Eksperiment s mljevenjem fluorescentnog praha

Vrijeme: 2014-11-26 Hits: 10

Pozadine: Ground by Tencan Planetary ball mill, matched with alumina jars and zirconia balls.
Vrijeme mljevenja: 2 Hours. Granularity of output powder meets customer’s request.

Applied Machine Model: Vertical Planetary Ball Mill XQM-0.4

1. Opis
1) Applied Field: Lighting Industry
2) Materials: Fluorescent Powder
3) Feed Size:500μm
4) Količina hrane: 1000g
5) Material Property : Crispy
6) Zahtjev kupca: Ispod 50μm.
7) Naknadna analiza: Test veličine čestica

12

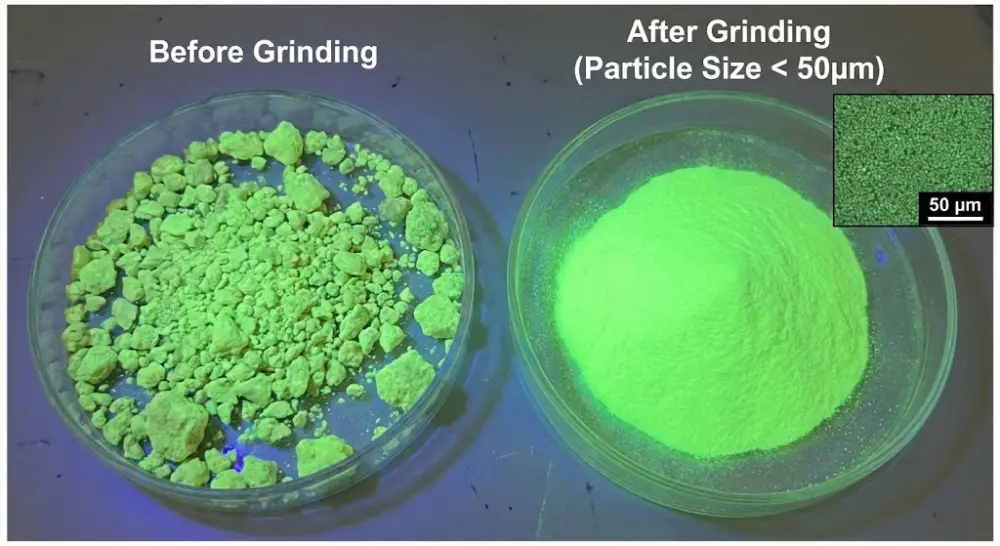

                            Before Grinding                                                                After Grinding

2. Rješenje:
1) Izbor opreme: Vertikalni planetarni kuglični mlin model XQM-4.
2) Accessories: Alumina Pots and Zirconia Balls.
3) Podešavanje parametara rada: Brzina rotacije: 500 o/min, pozitivan i negativan recipročan rad nakon 30-minutnog rada.
4) Grinding Time: 2 Hours
5) Rezultat brušenja: 99%<50μm
6) Conclusion: Planetary Ball Mill Model XQM-6 can be used to grind fluorescent powder.

34


3. Application Field: Fluorescent powder ground by XQM-4 can be applied into lighting products.


5
